• 11-oz front/8-oz rear floor carpeting

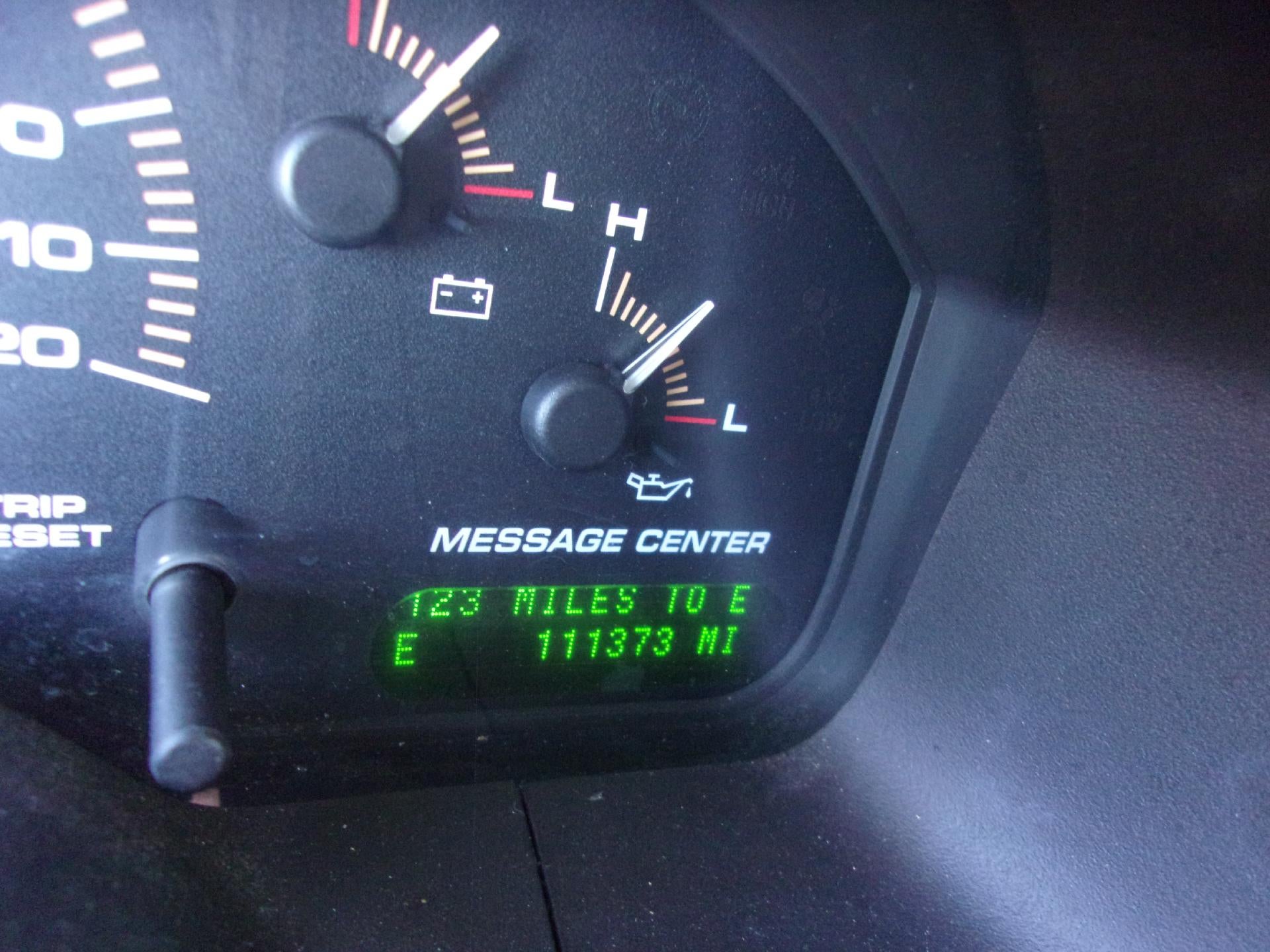

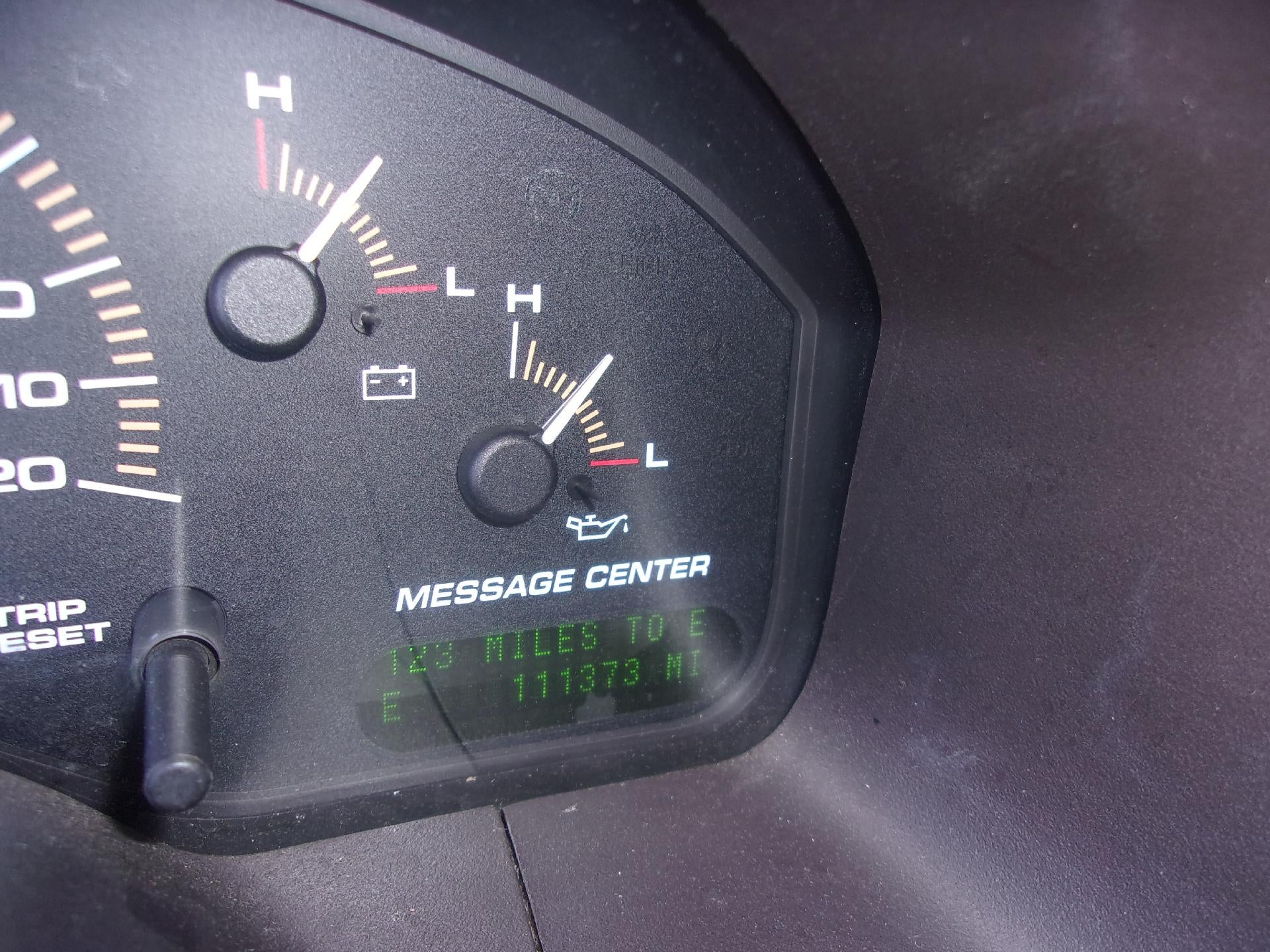

• Analog instrumentation-inc: voltmeter, oil pressure, water temp, speedometer, odometer, tachometer, fuel level
• Assist handles-inc: (1) front passenger, (2) second row

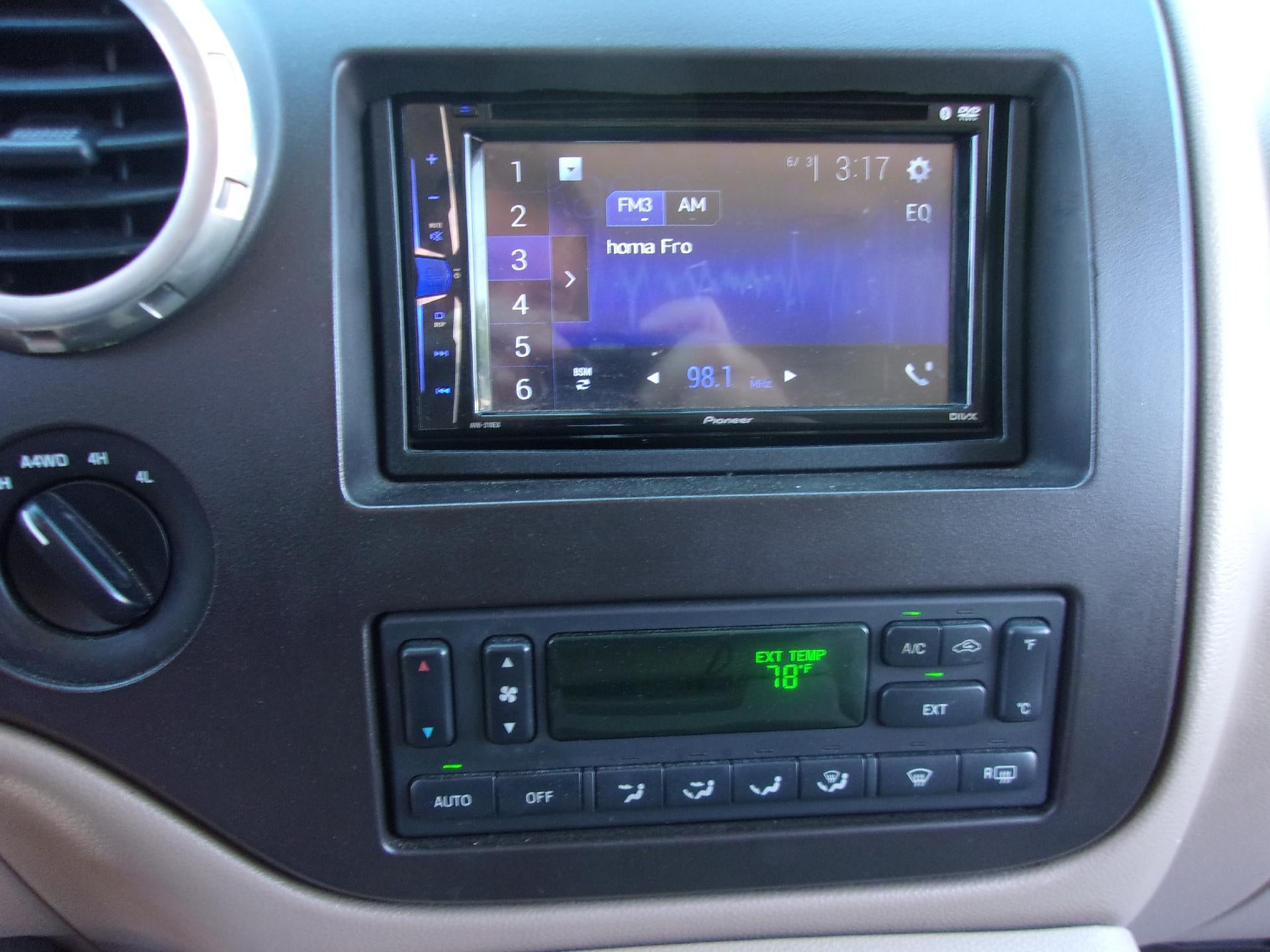

• Audiophile system w/AM/FM stereo/6-disc CD changer-inc: speed-compensated volume control, (7) speakers, 260-watt amplifier, RDS, clock, mute feature, steering wheel controls, subwoofer
• Auxiliary rear air conditioner w/heater
• Cargo area pwr point
• Coat hooks-inc: (2) second row, (2) 3rd row
• Color-keyed cloth headliner
• Color-keyed leather-wrapped steering wheel
• Concealed antenna in RH quarter glass
• Cruise control
• Cup holders-inc: (2) front/(2) rear in front console, (4) door trim panels, (3) rear quarter trim panels
• Dual color-keyed cloth sunvisors w/aux visors, dual illuminated mirrors
• Dual electronic automatic temp control air conditioning w/steering wheel con
• Electrochromic rearview mirror
• Floor console-inc: storage, coinholder, rear passenger audio controls w/ headphone jacks, tissue holder, (2) front/(2) rear cup holders, padded cover, (2) 1st & (1) 2nd row pwr points, aux HVAC controls, AdvanceTrac switch, pen/pencil holder
• Front & rear door map pockets
• Front/rear 12-oz carpeted floor mats
• Head restraints at all outboard seating positions
• Homelink universal transmitter

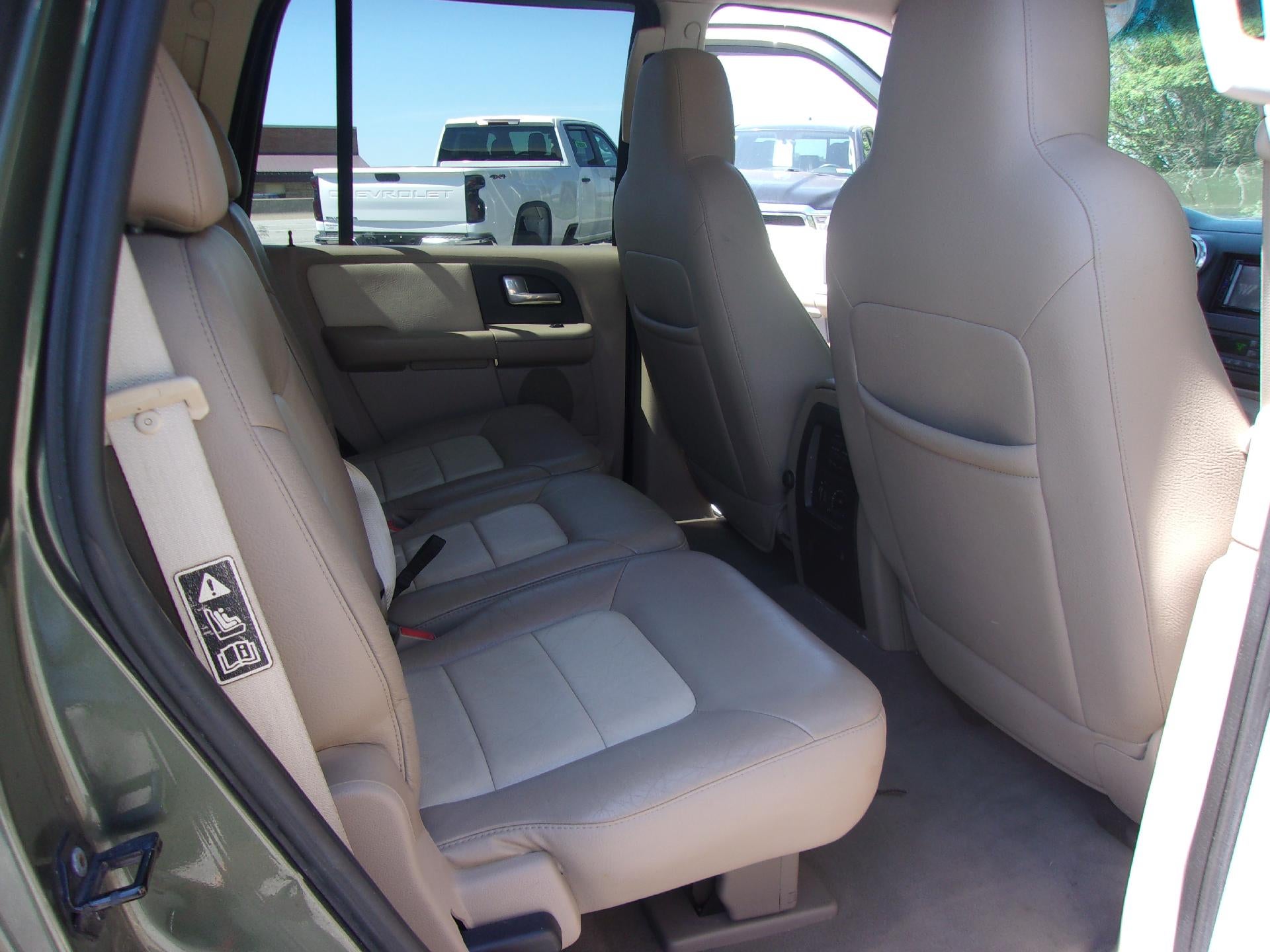

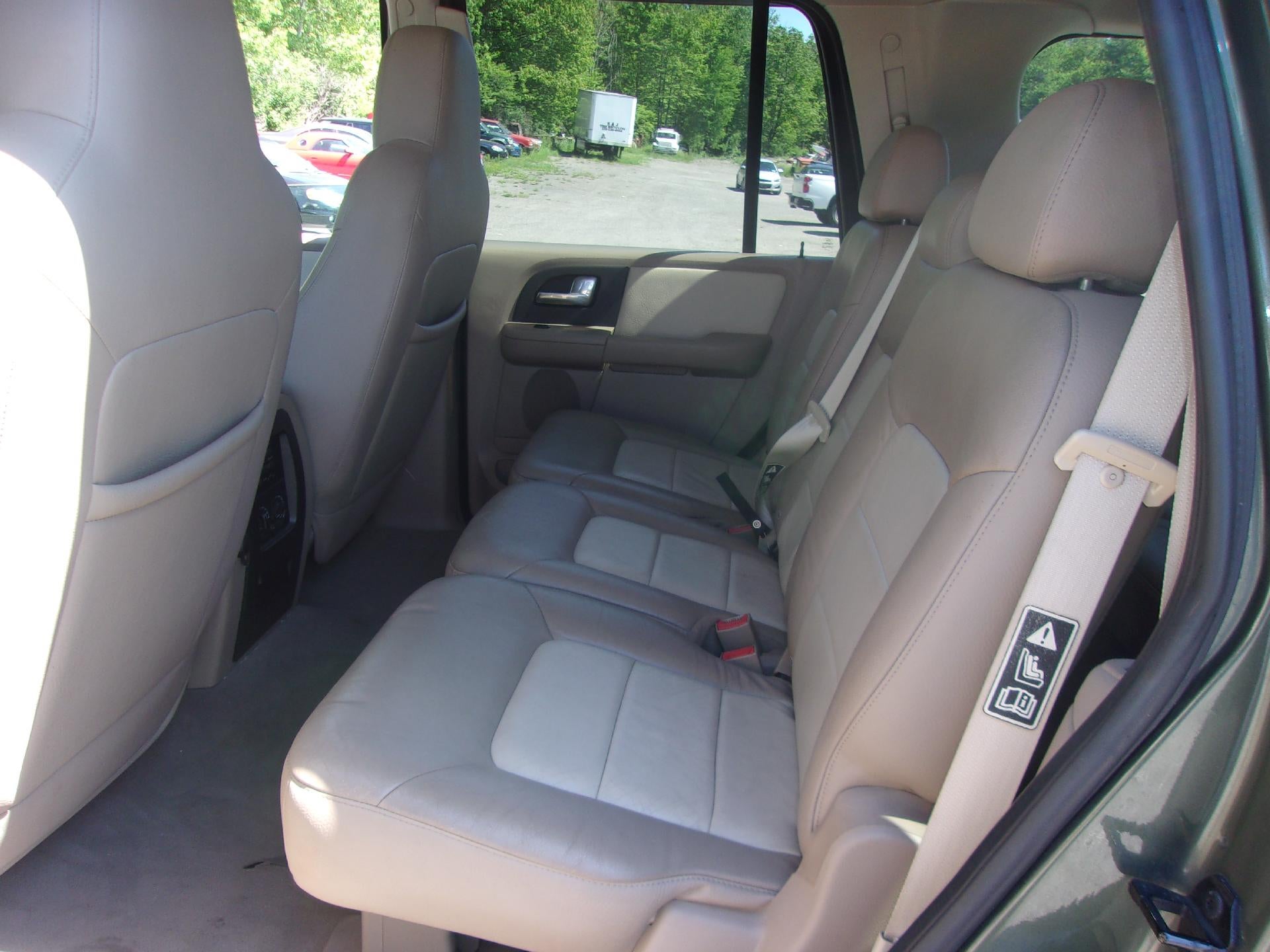

• Leather 2nd row 40/20/40 split bench seat-inc: sliding center portion, recline & fold flat feature, carpeted seatbacks, easy-entry to 3rd row feature

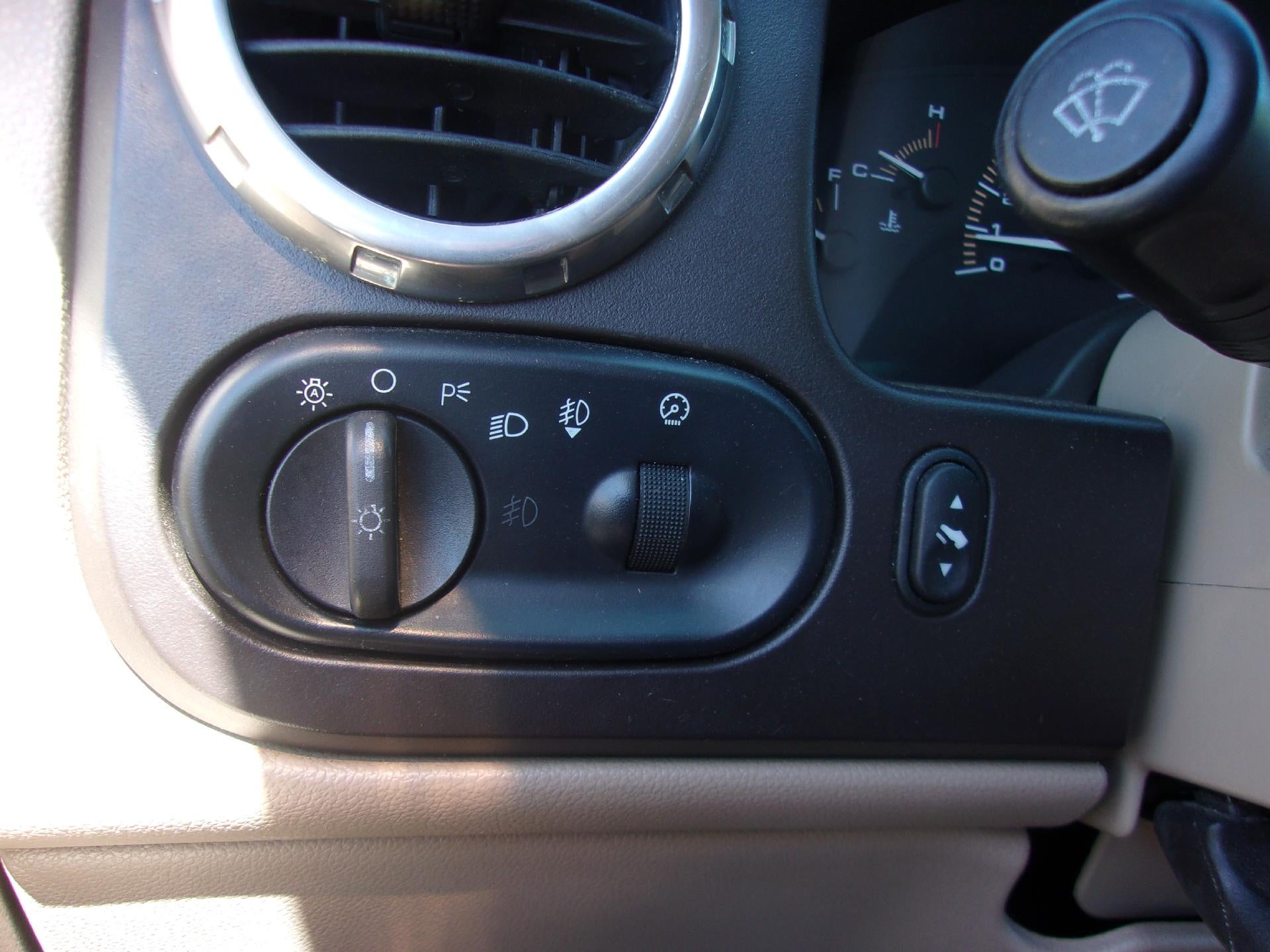

• Lights-inc: glove box, front door approach, front dome/map, rear cargo
• Locking glove box

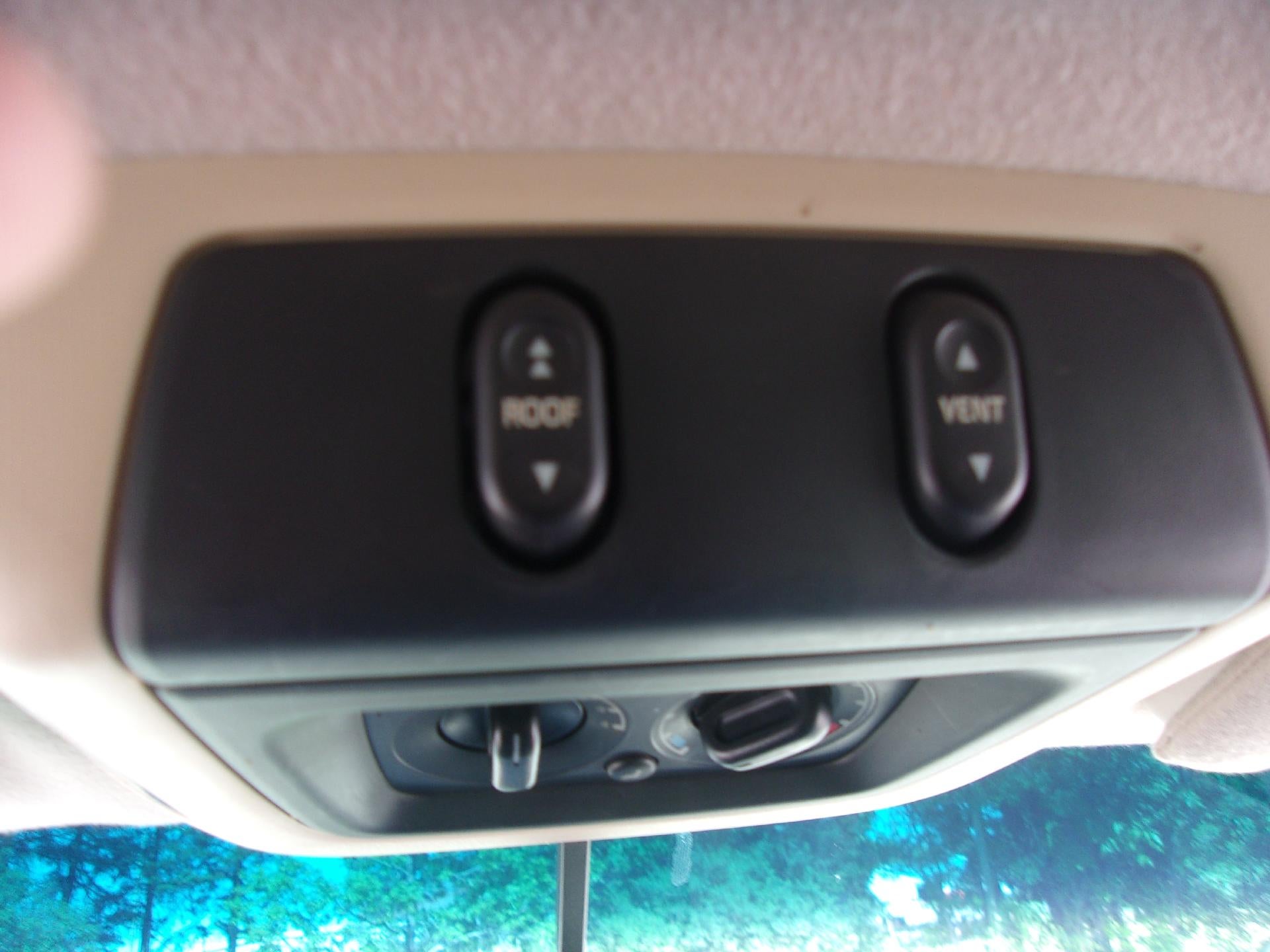

• Overhead console-inc: map lights, dual sunglasses holders, front aux HVAC controls, conversation mirror, pwr rear quarter window switch
• Pwr accessory delay
• Pwr adjustable accelerator/brake pedals w/2-position memory
• Pwr door locks
• Pwr windows w/driver one-touch-down
• Rear window defroster
• Remote keyless entry w/(2) key fobs, illuminated entry, driver door keypad
• Second row map lights
• SecuriLock passive anti-theft system
• Theatre dimming feature
• Tilt steering column

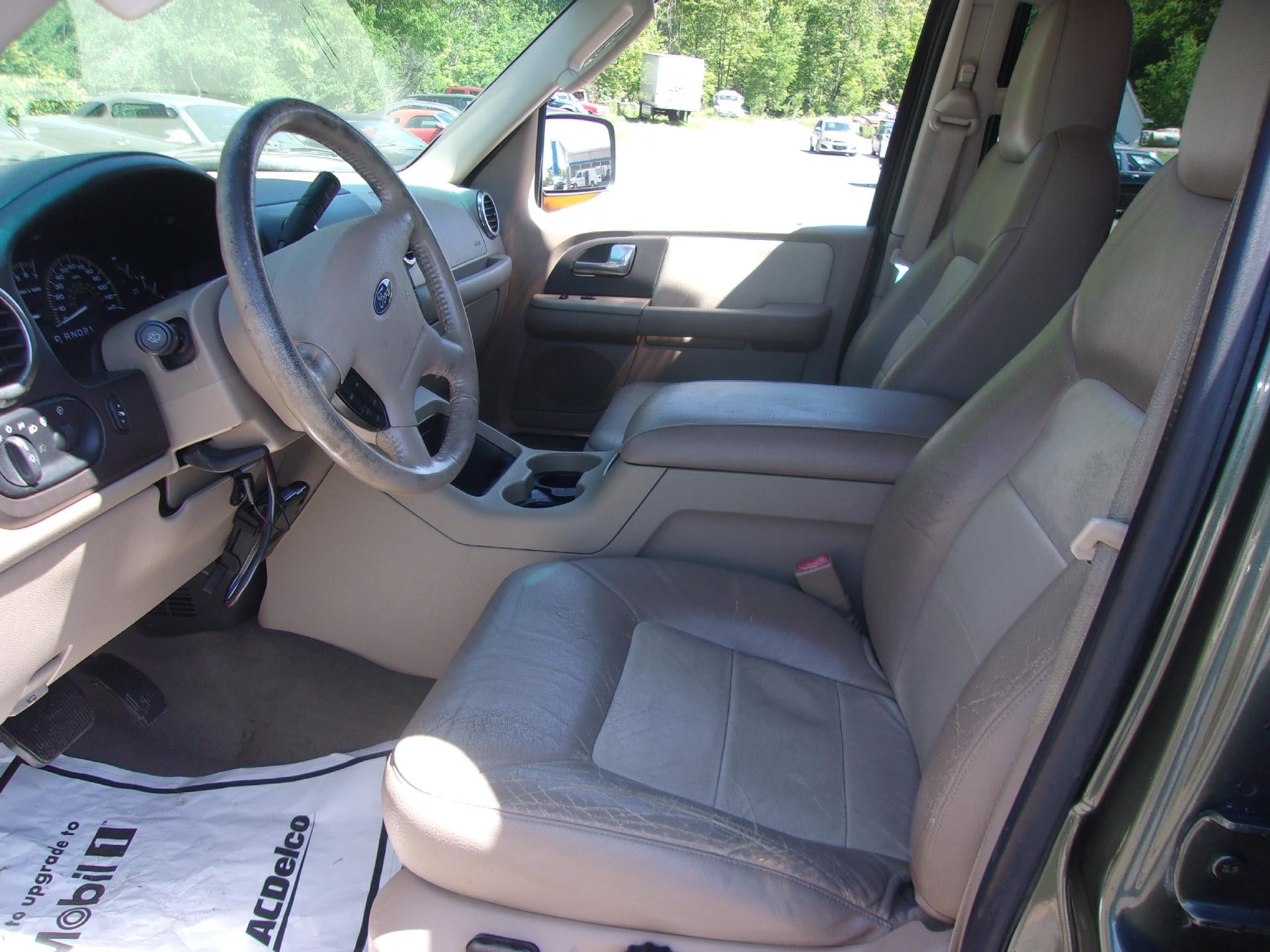

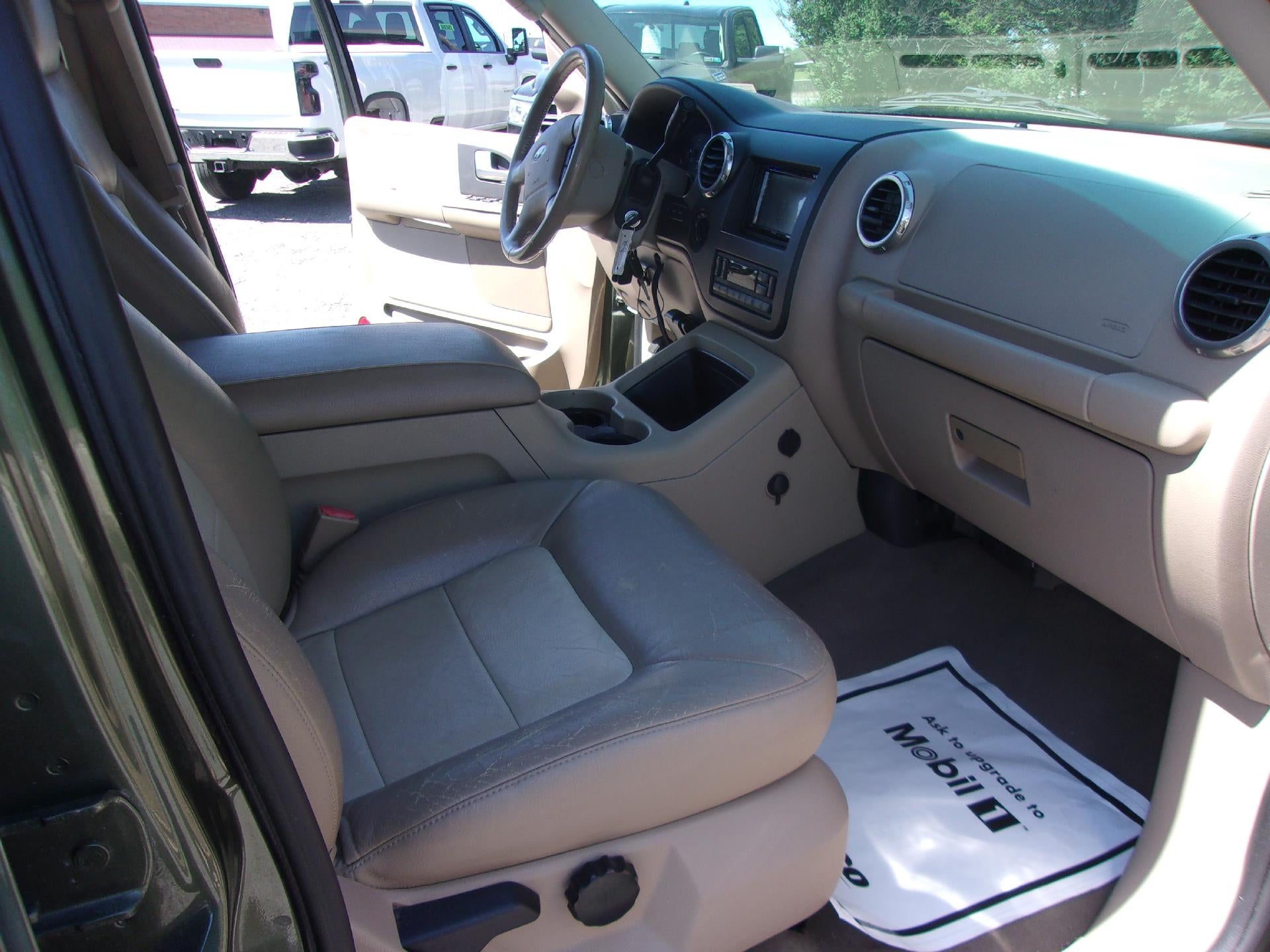

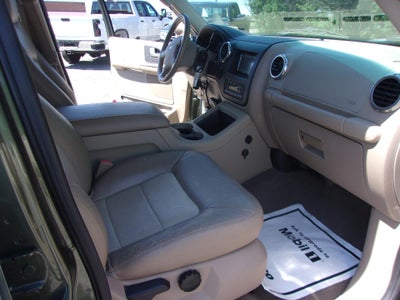

• Two-tone leather front captains chairs-inc: 6-way pwr driver seat w/2- position driver memory, dual manual lumbars
• Vinyl 3rd row 60/40 split bench seat-inc: fold flat feature

• 130-amp alternator

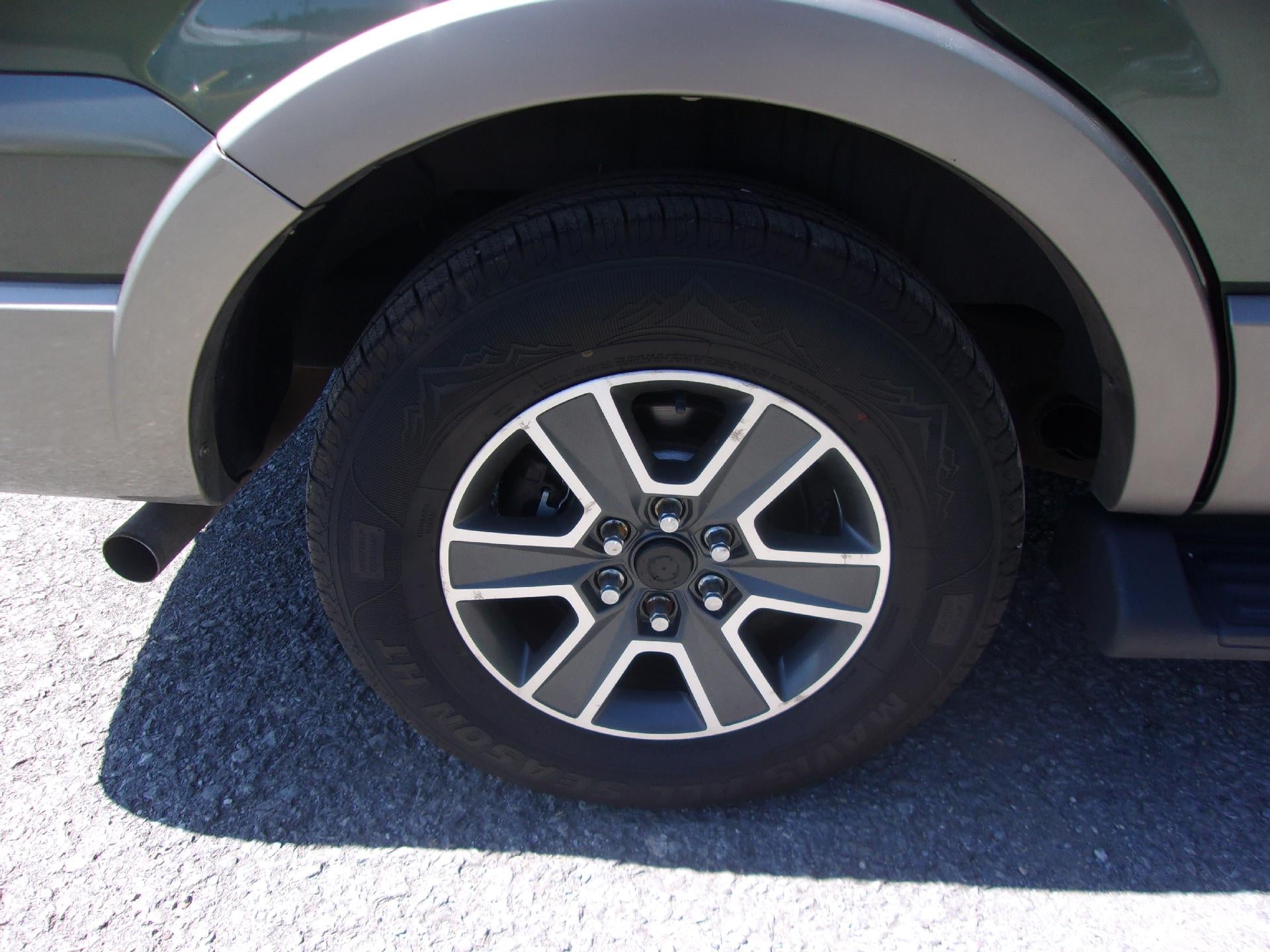

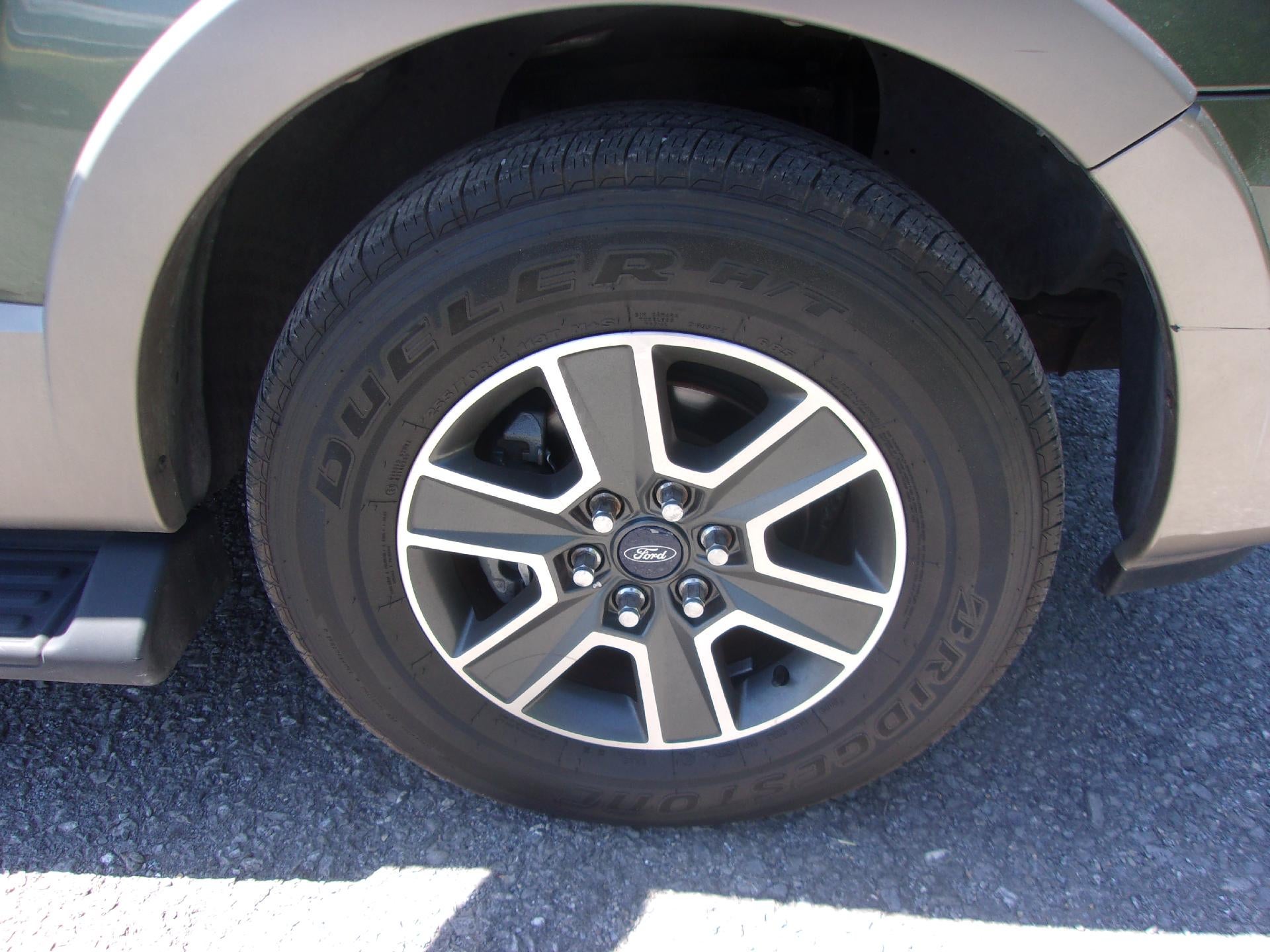

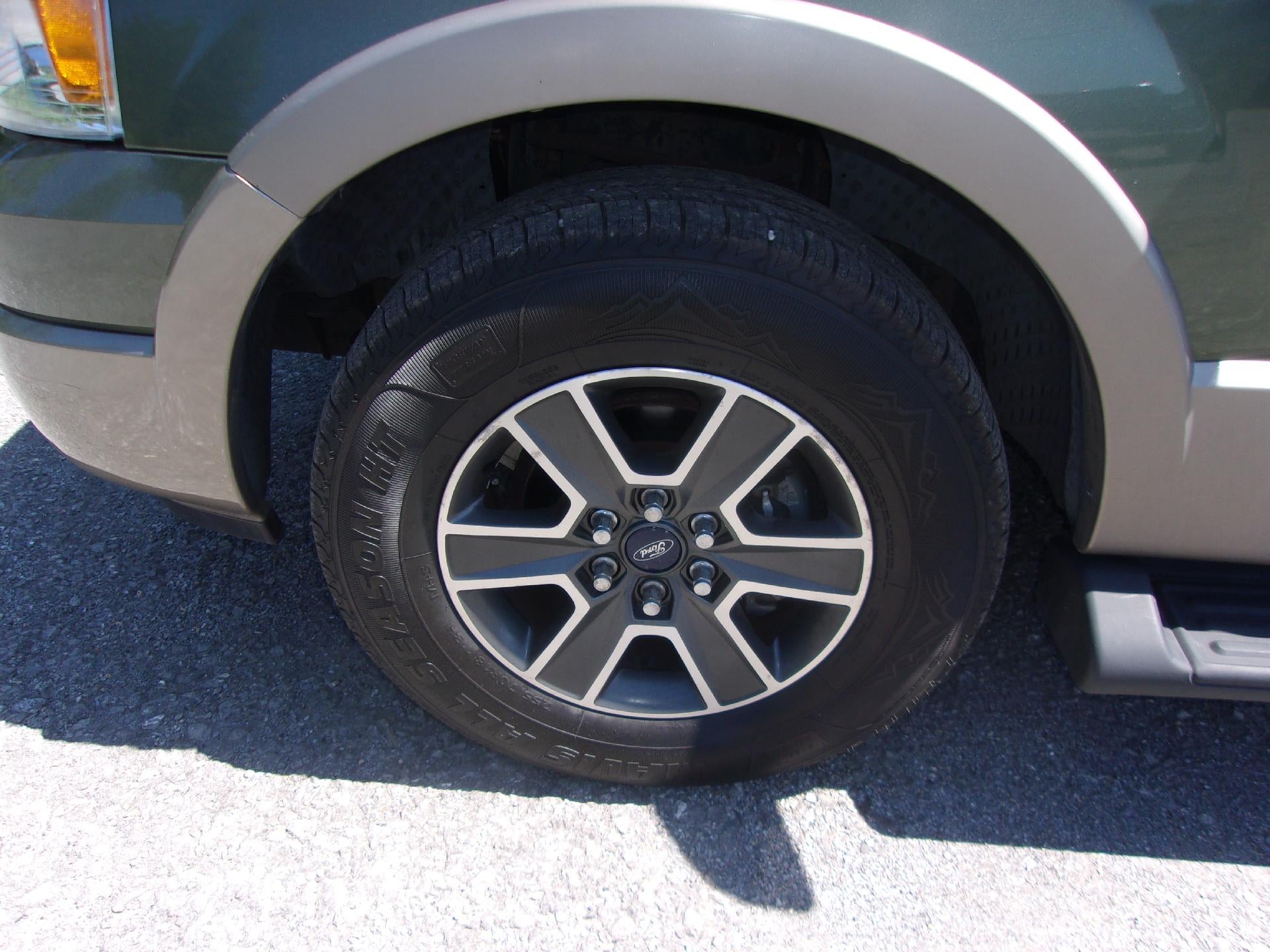

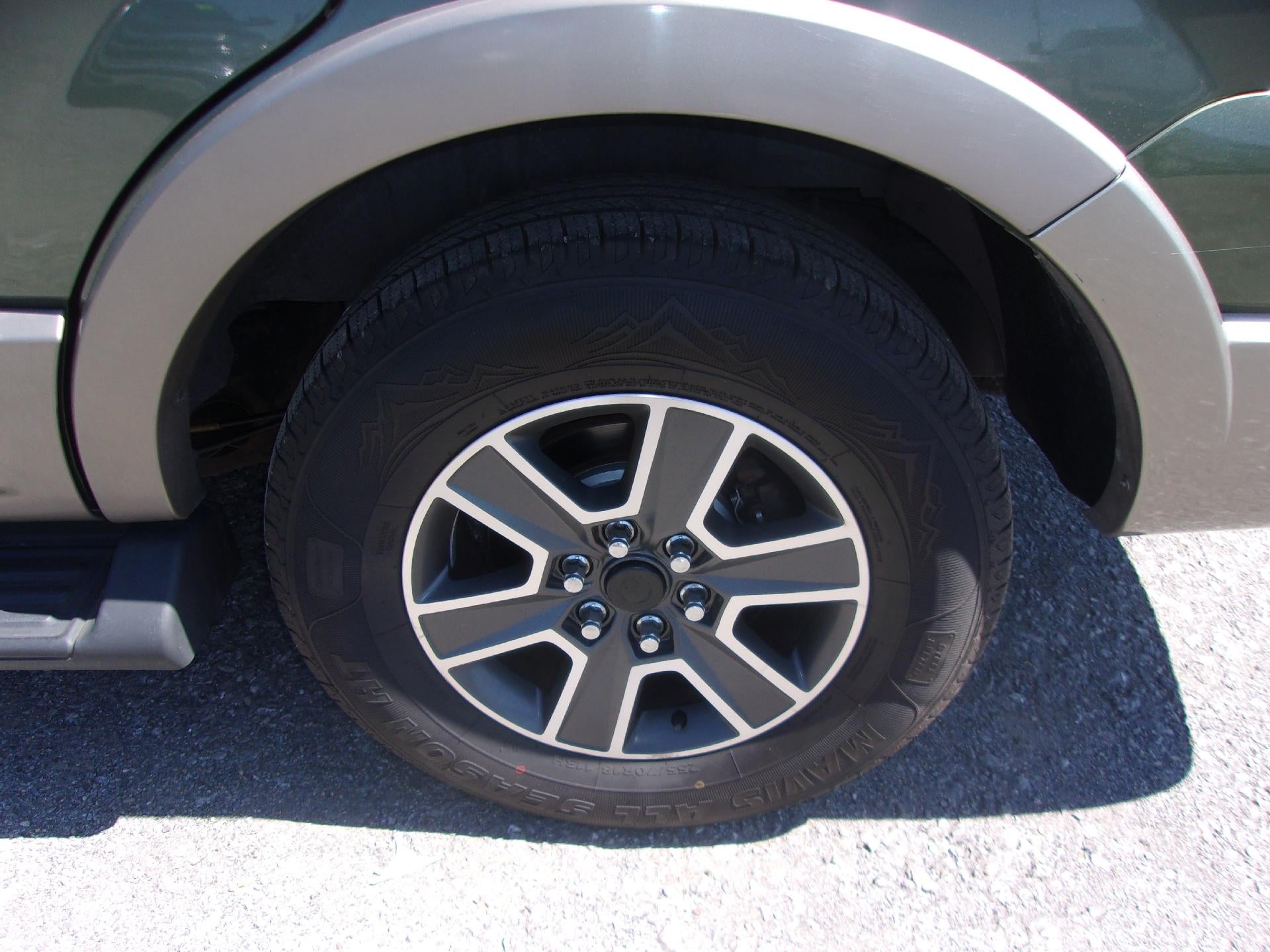

• 17" x 7.5" bright alloy wheels
• 2-speed transfer case w/3-position Control Trac shift-on-the-fly
• 28.0 gallon fuel tank
• 3275# capacity front coil springs/4128# capacity rear coil springs
• 3350# capacity front axle/4128# capacity rear axle
• 4-wheel anti-lock braking system
• 4-wheel drive
• 72 amp/hr (650-CCA) maintenance-free battery w/battery saver feature
• Double wishbone front suspension w/coil-over shock
• Front tow hooks
• Front/rear stabilizer bars
• Gas-charged shock absorbers
• Independent rear suspension
• Integrated class IV trailer towing receiver-inc: 4-pin & 7-pin connectors
• Limited slip rear axle
• P265/70R17 all-terrain SBR OWL tires
• Pwr 4-wheel disc brakes
• Steel spare wheel
• Underbody-mounted full size all-season BSW spare tire w/crank down feature
• Variable assist pwr rack & pinion steering

• 4-wheel anti-lock braking system
• Child-proof rear door locks
• Color-keyed lap/shoulder safety belts w/Beltminder system-inc: buckle pretensioners, load-limiting retractors
• Driver & front passenger airbags-inc: driver seat position & load severity sensing
• Front/2nd row adjustable shoulder belt height
• Front/rear outboard head restraints
• Side intrusion door beams

5.4L (330) SOHC SEFI V8 "TRITON" ENGINE

• (STD)

• 3rd Row Seat
• Premium Sound System
• Rear Seat Audio Controls
• Steering Wheel Audio Controls
• Multi-Zone A/C
• Rear A/C
• Rear Parking Aid
• Leather Seats
• Power Driver Seat
• Seat Memory

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 14
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3275
• Gross Axle Wt Rating - Rear (lbs): 4128
• Curb Weight - Front (lbs): 2886
• Curb Weight - Rear (lbs): 2837
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8650
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 865
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Coil Spring
• Spring Capacity - Front (lbs): 3275
• Spring Capacity - Rear (lbs): 4128
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Independent
• Axle Capacity - Front (lbs): 3350
• Axle Capacity - Rear (lbs): 4128
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 34.93
• Shock Absorber Diameter - Rear (mm): 34.93
• Stabilizer Bar Diameter - Front (in): 1.38
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.9
• Tires
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): 2304
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Spare: 654
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.5
• Turning Diameter - Curb to Curb (ft): 39.2
• Turning Diameter - Wall to Wall (ft): 40.5
• Frame
• Frame Type: Front-to-Rear Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 28
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/rear bumper (in): 205.8
• Width, Max w/o mirrors (in): 78.7
• Height, Overall (in): 77.4
• Overhang, Front (in): 38.6
• Overhang, Rear w/bumper (in): 48.2
• Ground to Top of Load Floor (in): 35.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -

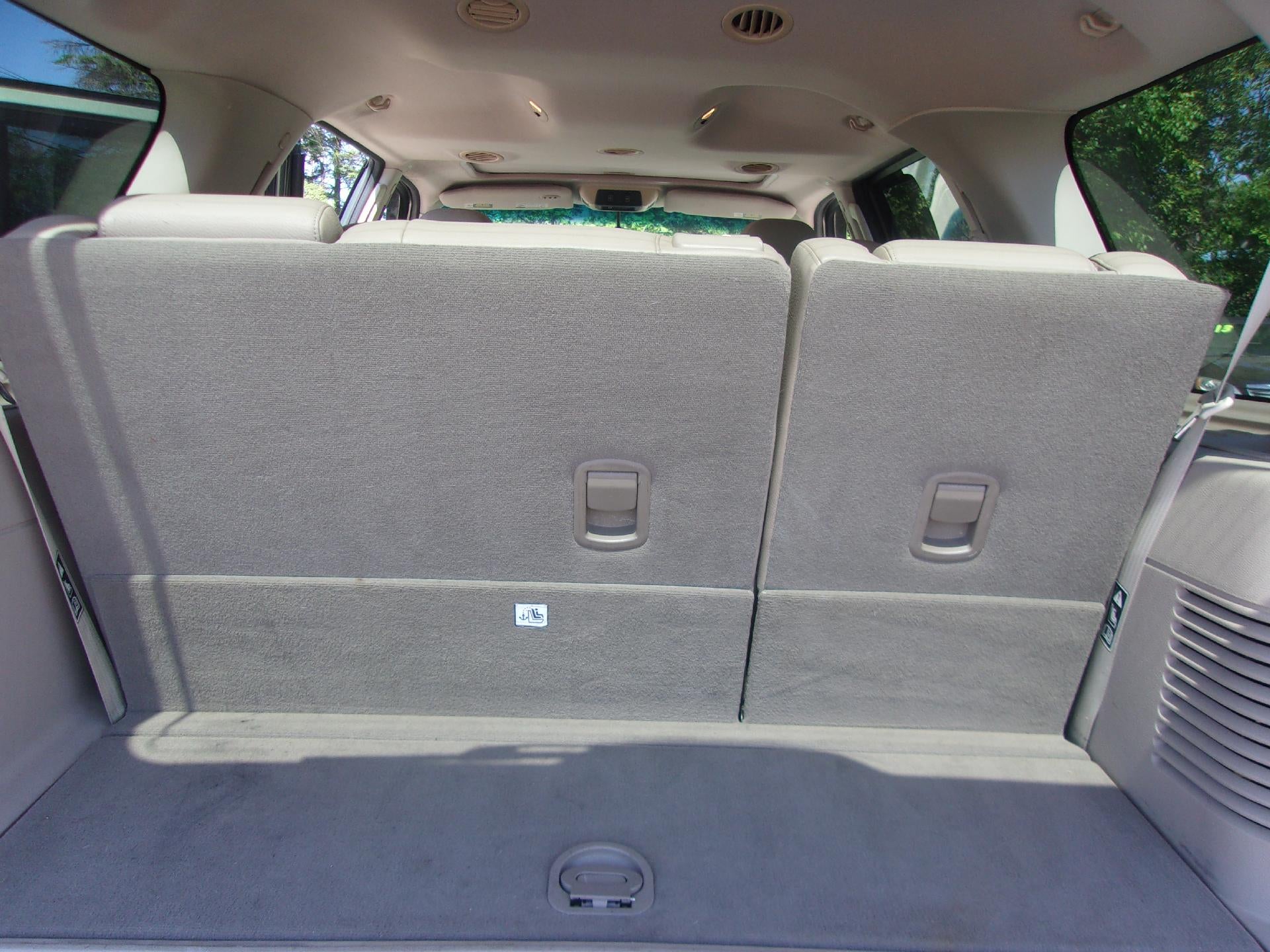

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 87.2
• Cargo Area Length @ Floor to Seat 2 (in): 52.5
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 110.4
• Cargo Volume to Seat 2 (ft³): 60.9
• Cargo Volume to Seat 3 (ft³): 20.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.7
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 63.4
• Front Hip Room (in): 63.0
• Second Head Room (in): 39.8
• Second Leg Room (in): 38.7
• Second Shoulder Room (in): 64.3
• Second Hip Room (in): 62.4
• Third Head Room (in): 38.2
• Third Leg Room (in): 36.3
• Third Shoulder Room (in): 60.1
• Third Hip Room (in): 54.5
• Summary

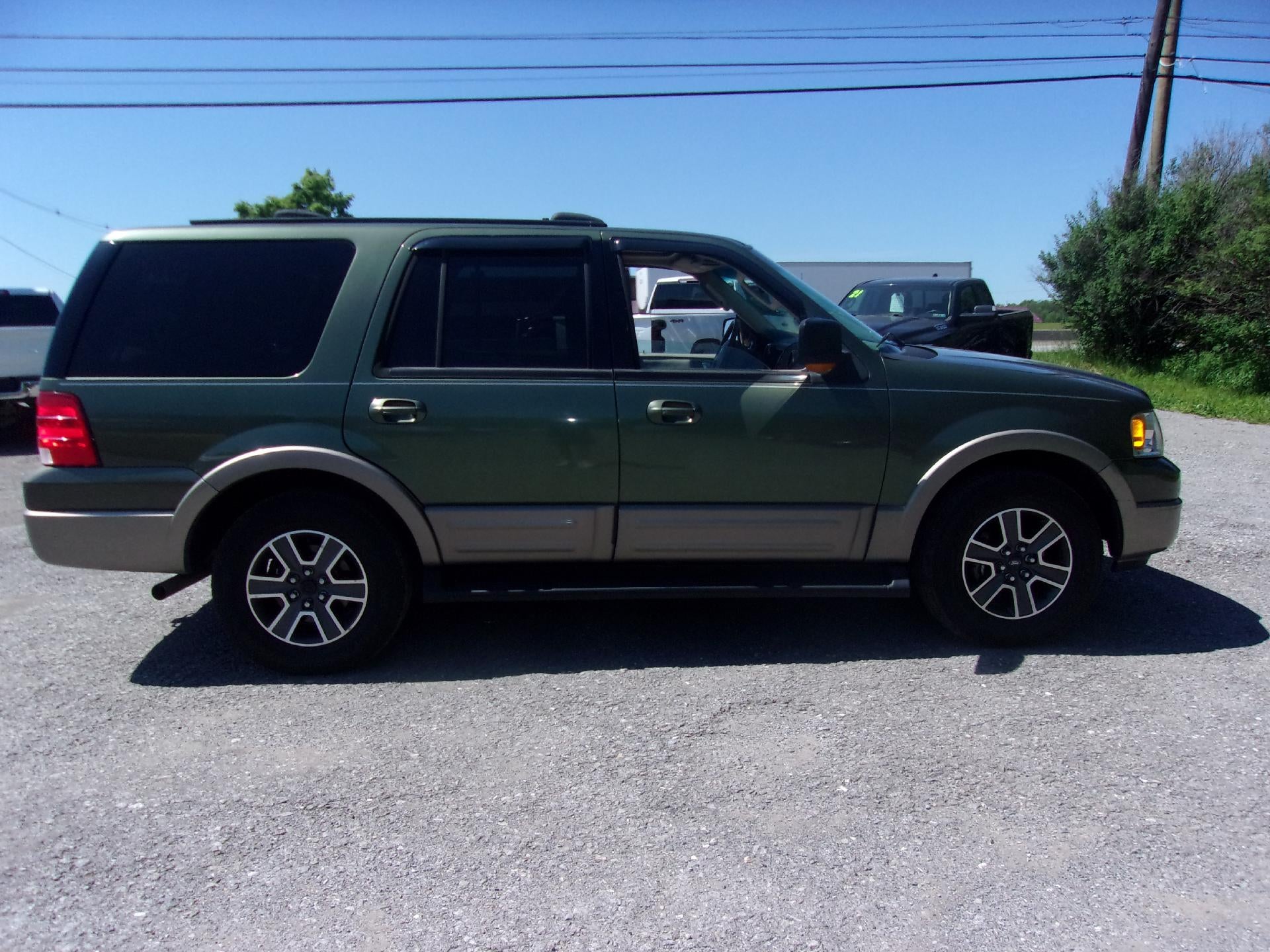

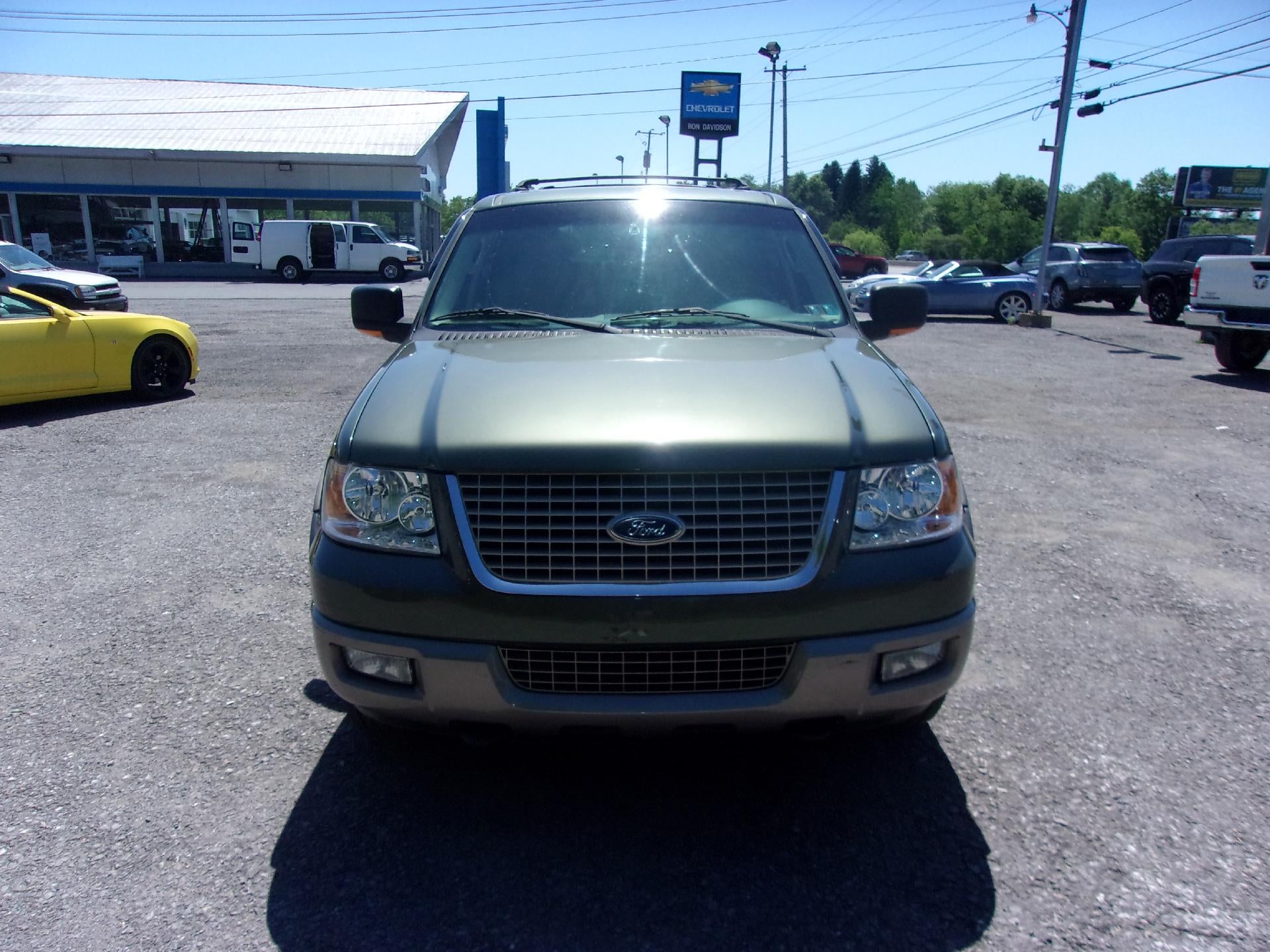

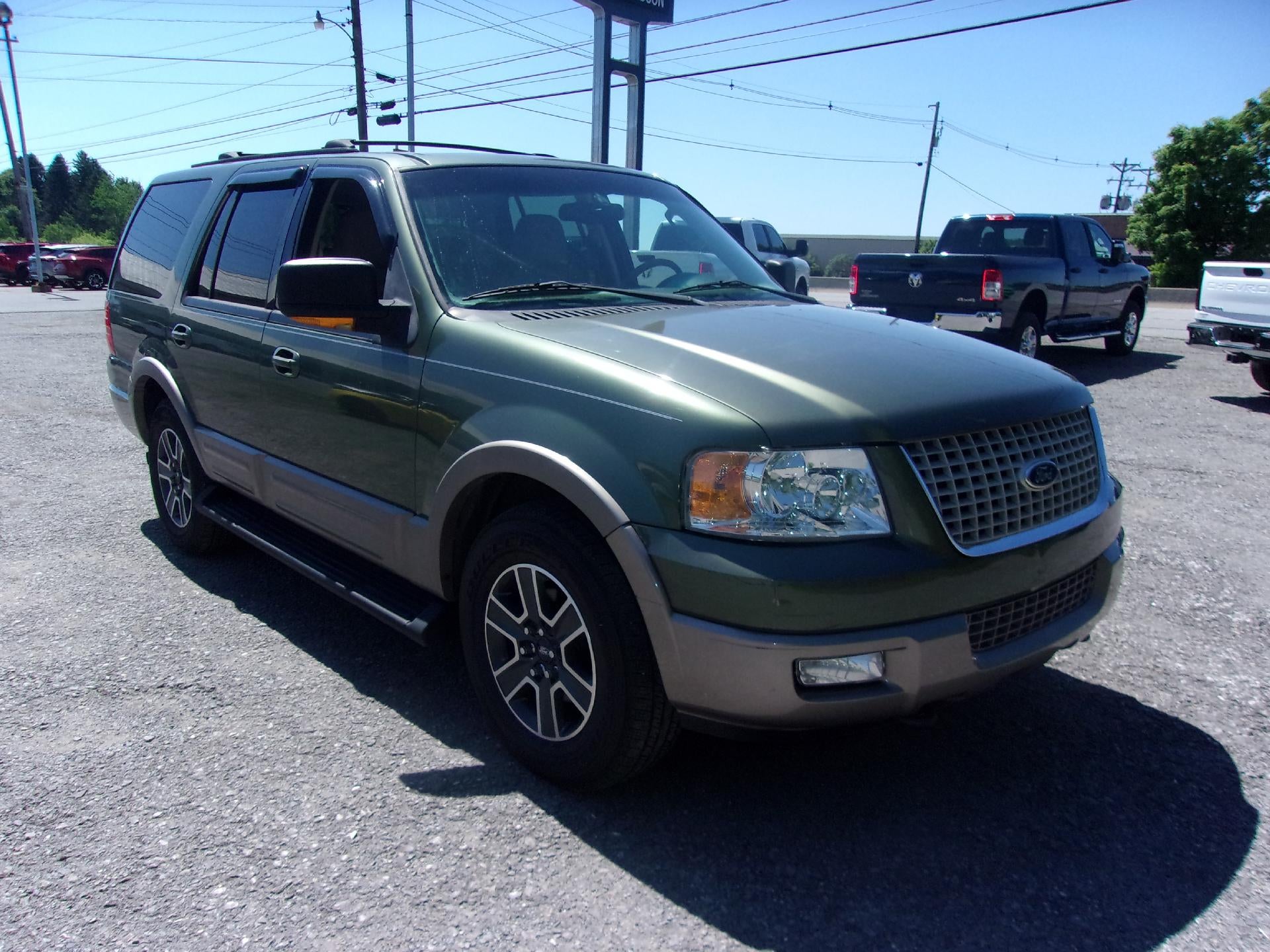

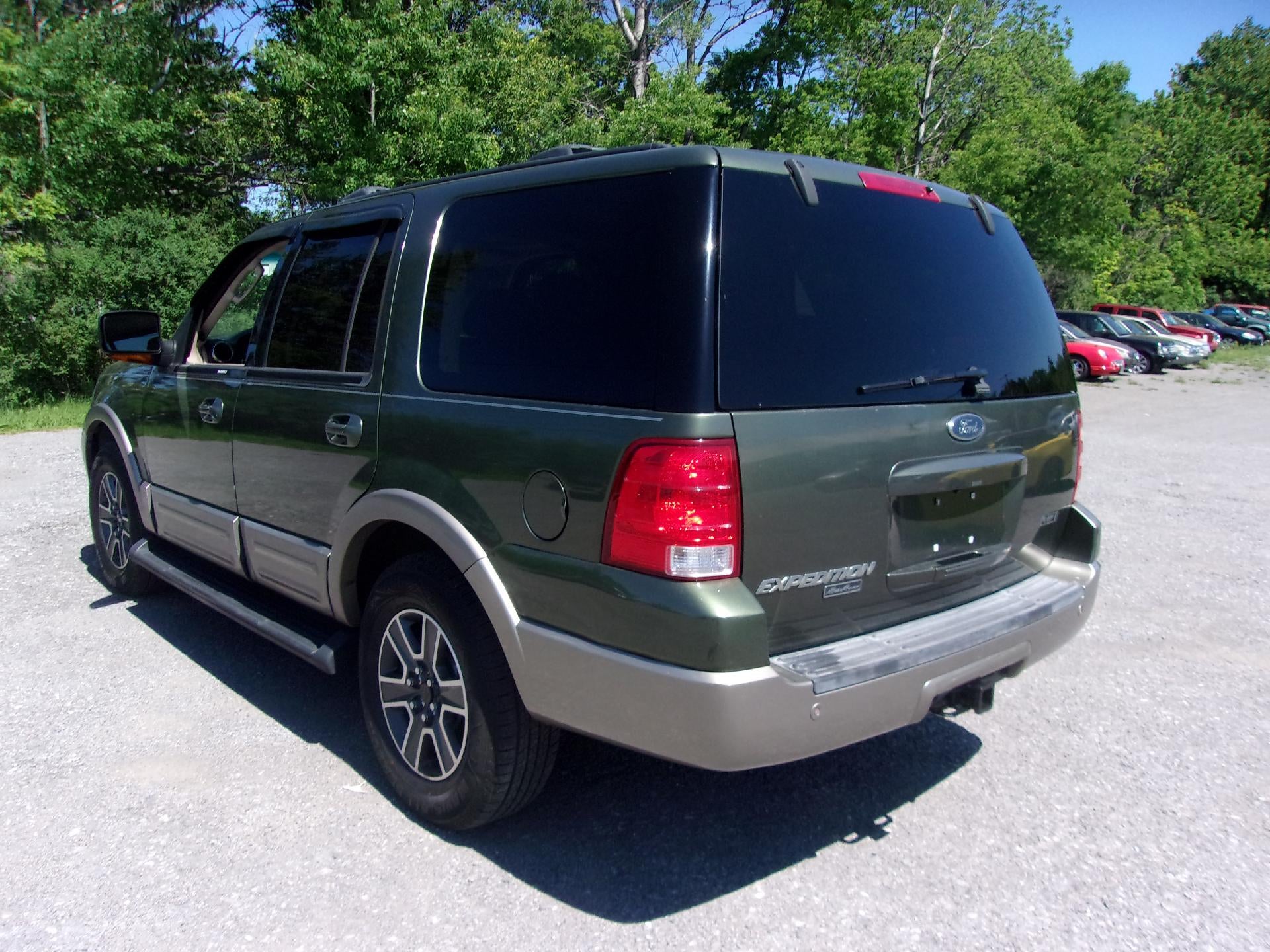

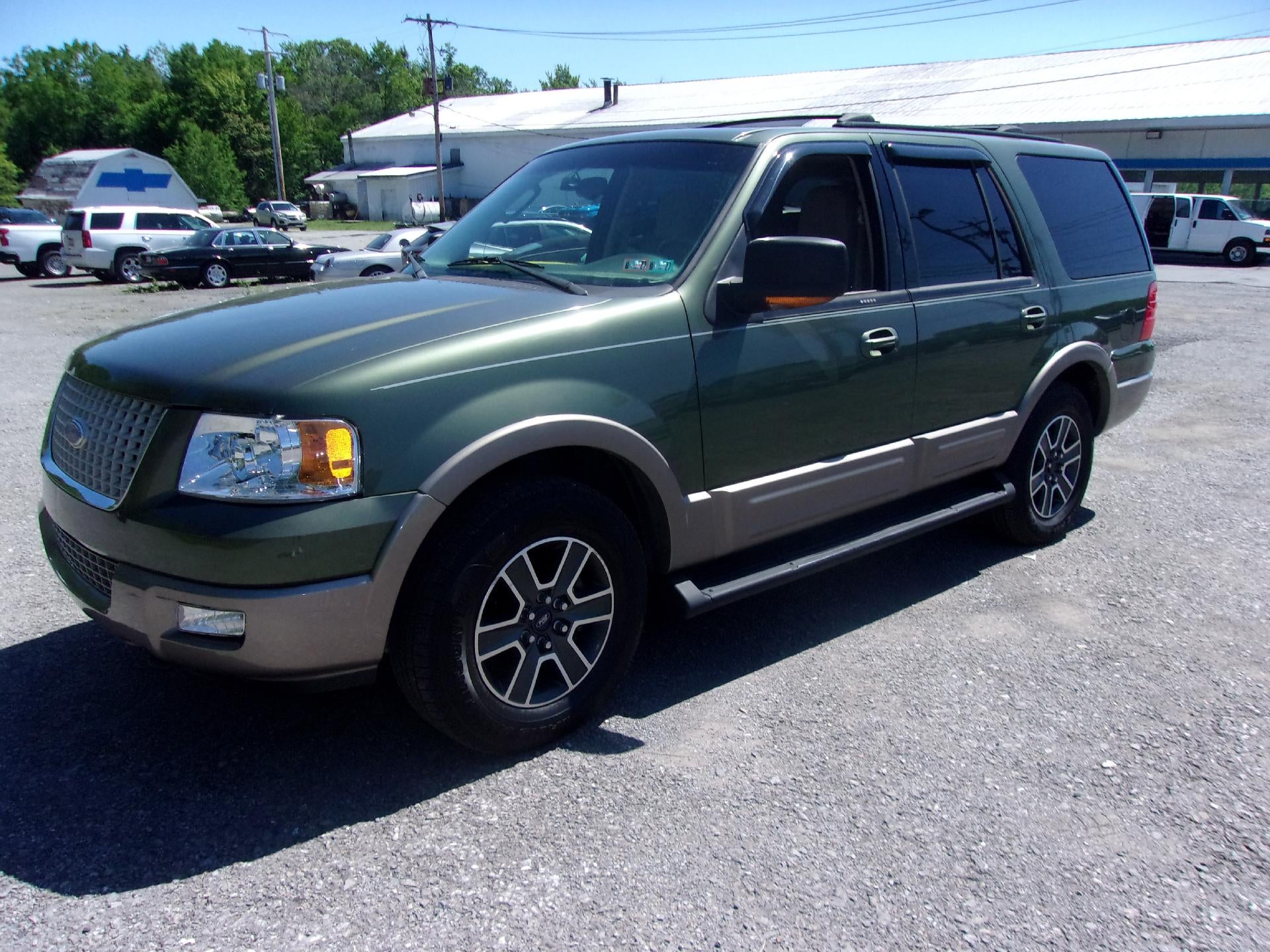

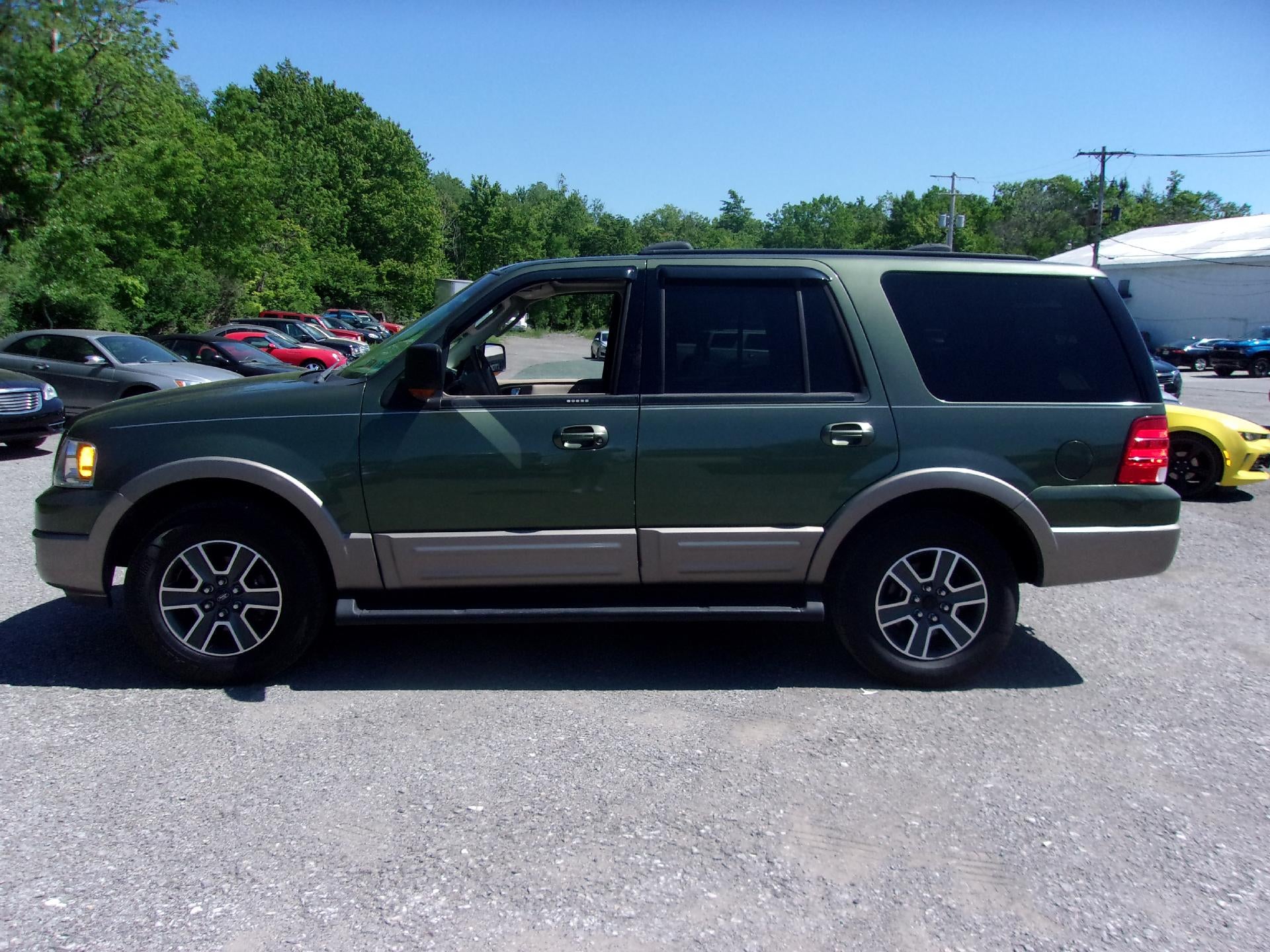

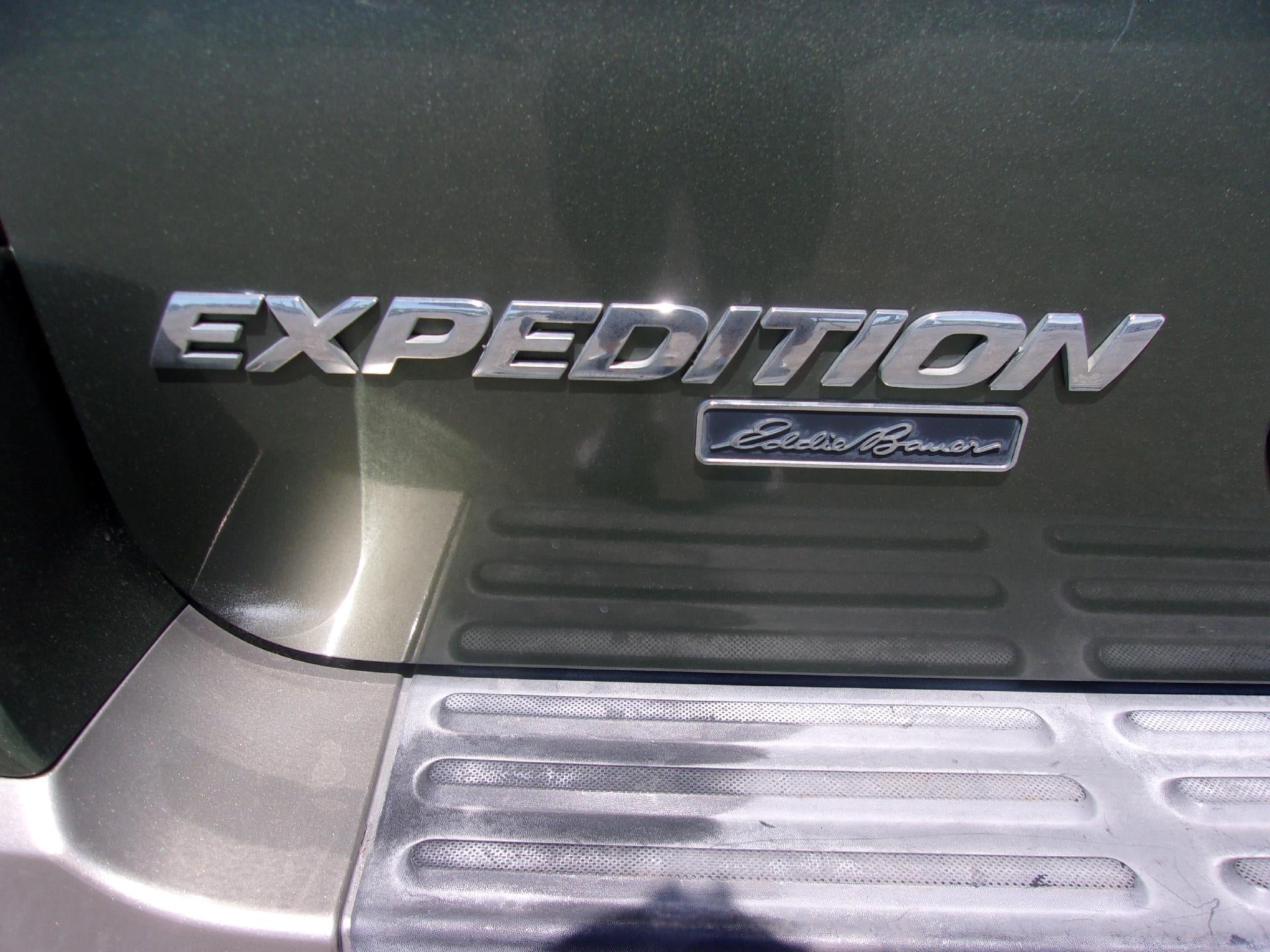

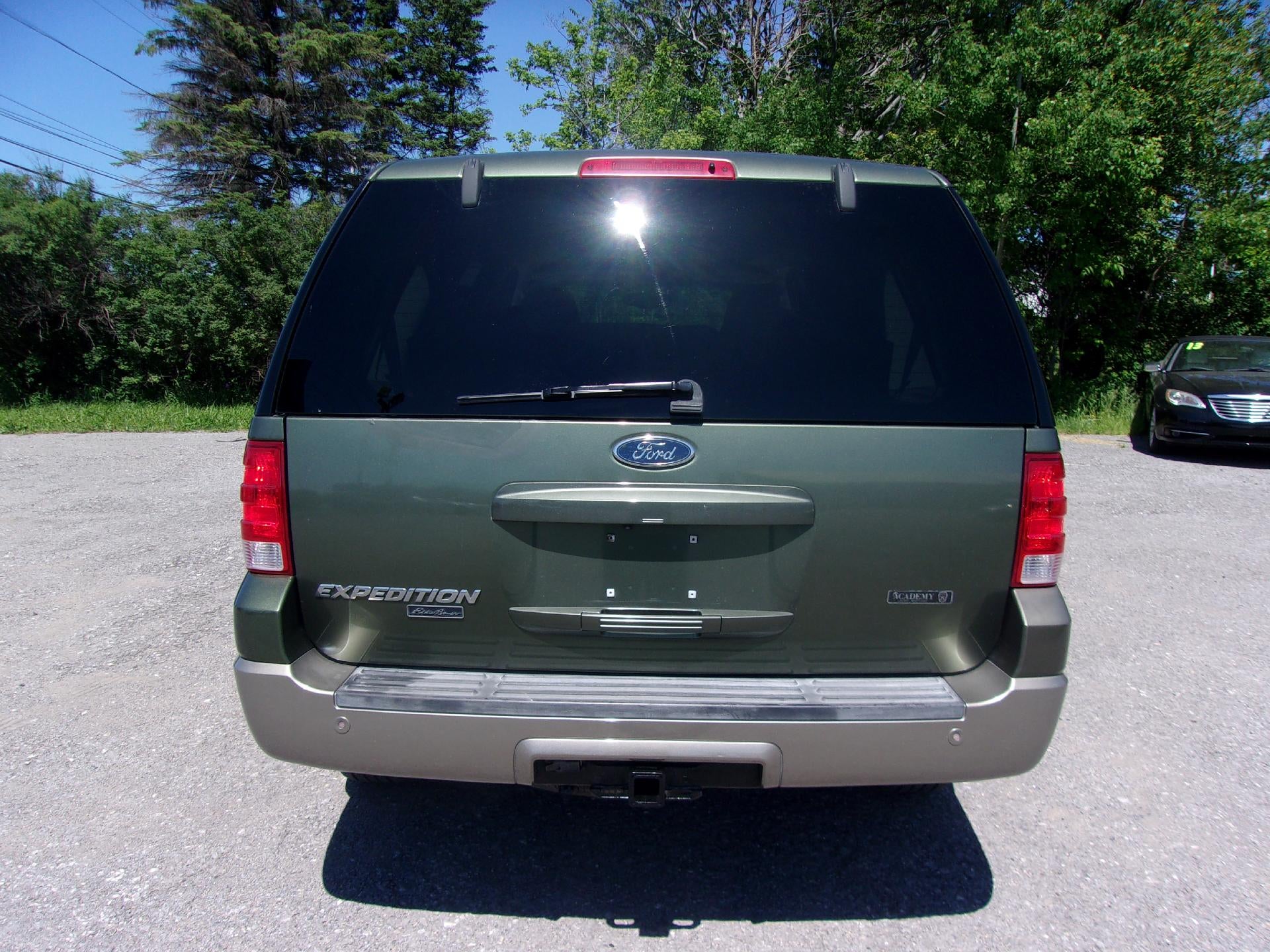

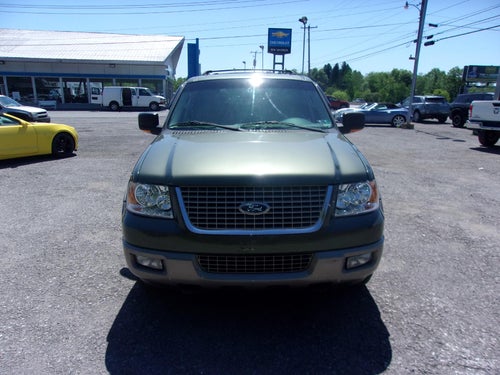

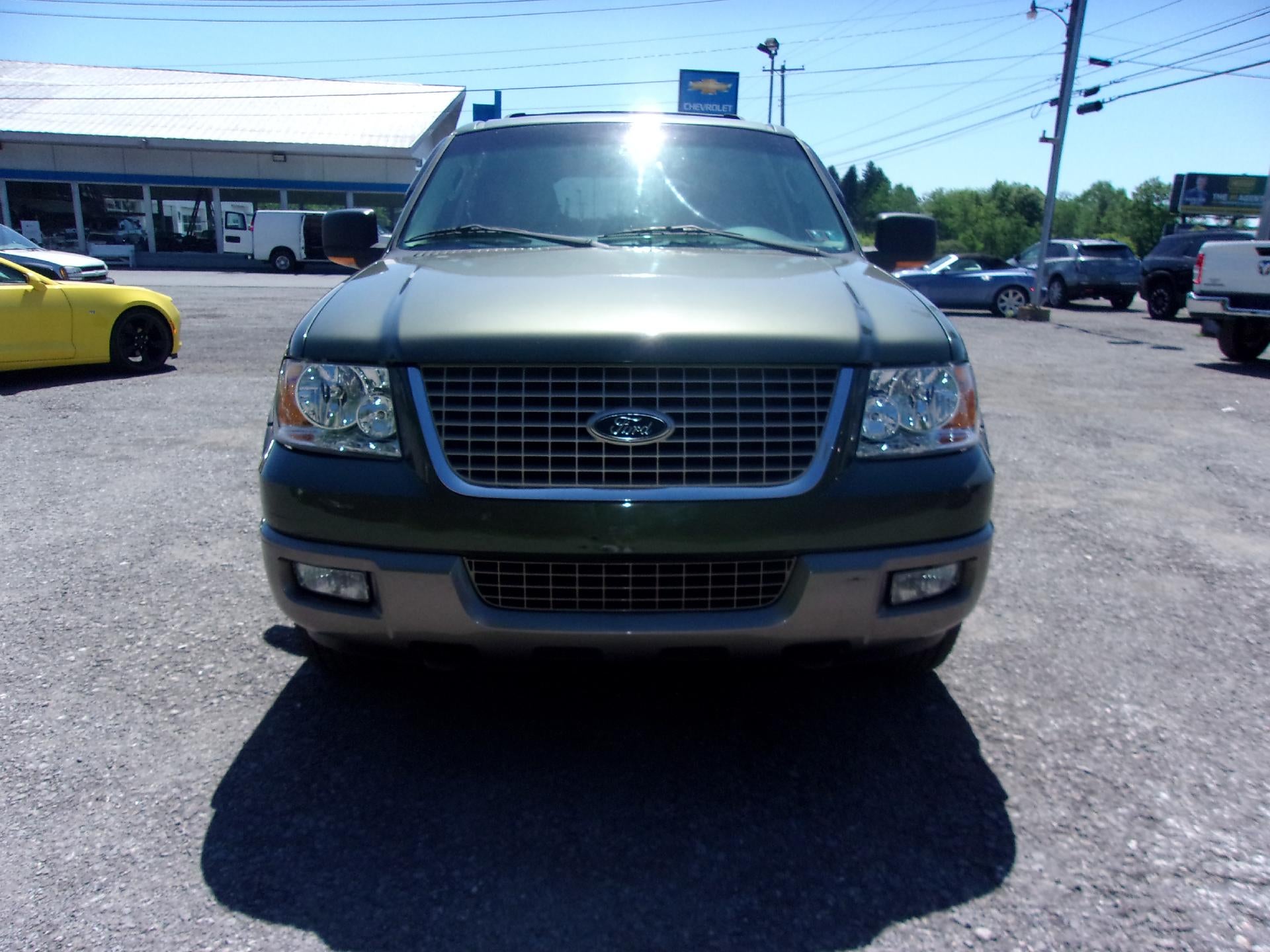

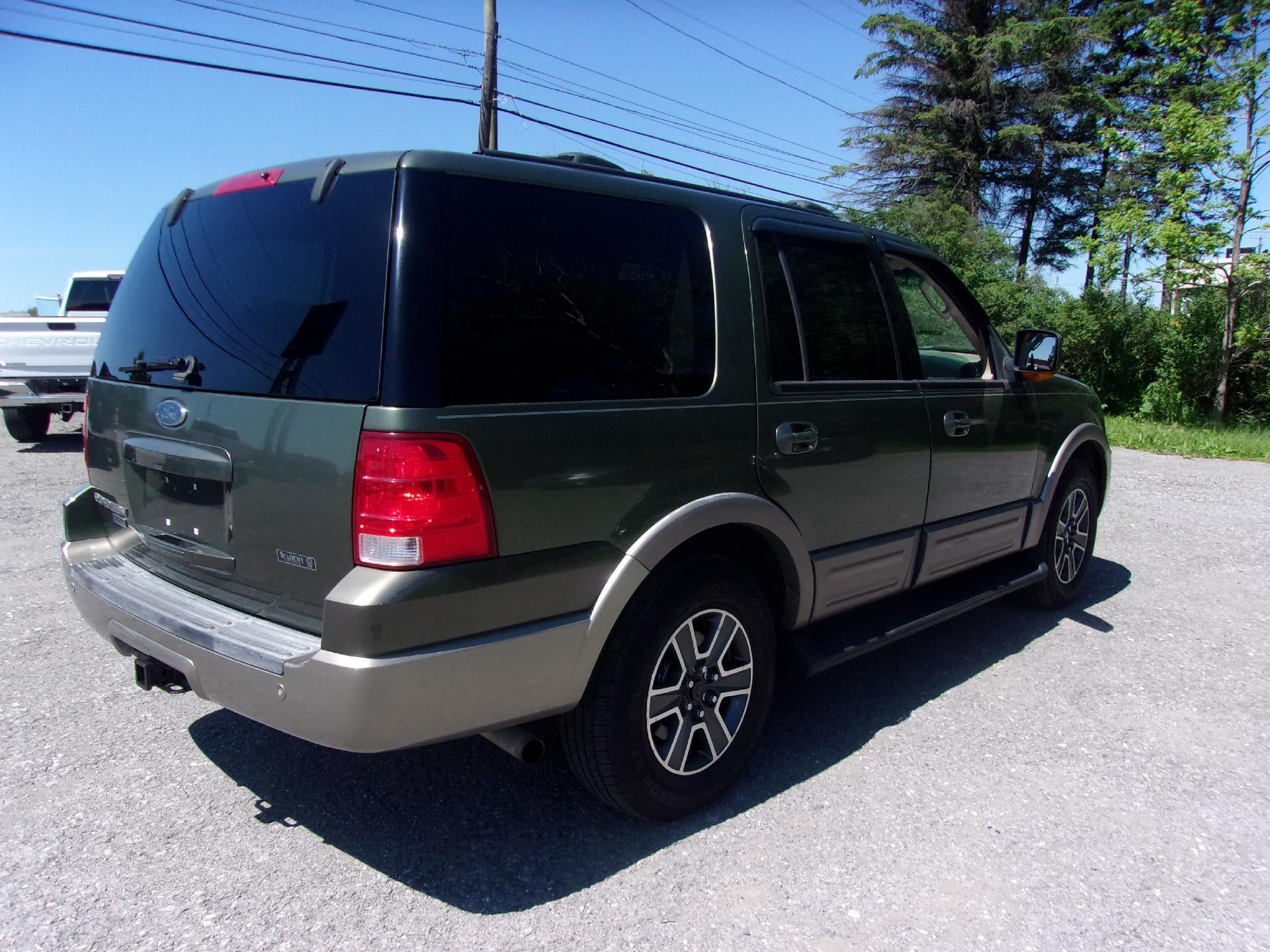

• Vehicle Name: Ford Expedition
• Body Style: 4 Door
• Body Code: 119" WB
